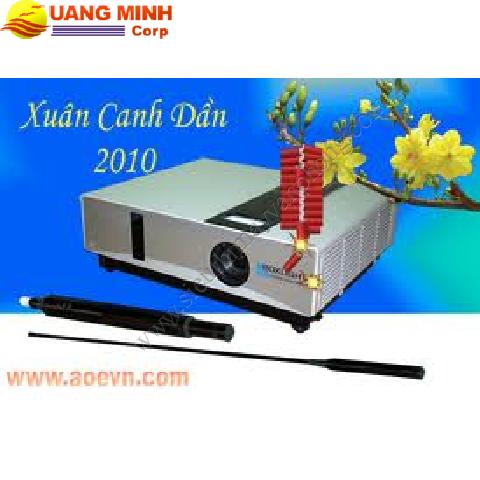

Máy chiếu BOXLIGHT PROJECTOWRITE

Native Resolution:

1024 x 768 XGA

Supported Resolutions:

SXGA, XGA, SVGA, VGA, Mac

Brightness:

3000 lumens

Lamp:

200W NSH Lamp

Lamp Life:

2000 hours (normal)
3000 hours (ECO mode)

Display Type:

3X0.63” MLA
HTPS TFT LCD

Contrast Ratio:

500:1

Colors:

16.7 million

Aspect Ratio:

4:3 native
16:9 compatible

H-Sync Range:

15-69 kHz

V-Sync Range:

43-85 Hz

Inputs:

2-RGB D-Sub (2nd for RGB and Y Pb Pr)
1-Phone-jack audio
1-Composite AV
1-S-Video
1-RS-232

Outputs:

1-RGB computer out,
1-Mini-jack audio
1-USB mouse

Speakers:

1 – 2 watt speaker

Special features

Auto Keystone
Auto Brightness
Auto Ceiling
Auto image Optimize

Noise:

30 dB in economy mode

Weight:

2.9kg (6.4lb)

Dimensions:

310(W) x 96(H) x 270(D)  mm

Projector Lens:

Manual zoom and focus,
Zoom ratio:  1:1.2
F/1.6~1.88, f=18.6~22.3mm

Image Size:

40 - 300 inches (diagonal)<60”@1.7M>

Throw Distance:

1.1-10.5M

Keystone Adj.:

Digital adjustment:
Vertical   +/- 30 degrees

Adjustments:

on-board / remote / RS-232 Wire

Power Supply:

100-240V at 50-60Hz

Power Consumption:

250 watts

HDTV/EDTV Compatibility:

1080i, 720p, 576i/p , 480i/p

Video Compatibility:

NTSC, NTSC 4.43, PAL-I, PAL-M/N, PAL-D/K, PAL-B/G SECAM

Workstation Compatibility:

Yes

Regulations

UL / FCC class B / CE / CB

Interactive Projector

Light Emitted

Infrared

Control Buttons

1 button

Power Requirement

1.5V size AAA battery x 2

E-wand extendable length

62cm ~ 92cm (TBD)

Weight

60g (without battery) (TBD)

System Requirements

OS Required

Microsoft Windows 98/2000/XP

Processor Type

Intel Pentium or above

RAM Size

128 MB (256 MB or above recommended)

Min. Hard Drive Space

30 MB CD-ROM Driver & available USB 2.0 port

Recommended Signal Reception Range

Projection Size

Distance between screen and Projector

60”

1.7 m

80”

2.3 m

100”

2.9 m

120”

3.5 m

Package Contents

Projector built in with interactive whiteboard
E-wand x 1 with AAA battery x 2
Driver CD-Rom x 1
1.5M USB Cable X 1
User’s Manual
